Aquacup provides containerized direct drinking water purification solutions integrating advanced filtration, membrane separation, disinfection, and intelligent control technologies. Designed for municipal water, groundwater, river water, and high-TDS water sources, the system delivers safe and reliable drinking water for residential, commercial, and public applications.
The system combines quartz sand filtration, activated carbon filtration, PP cartridge filtration, and RO/NF membrane technology to effectively remove suspended solids, organic matter, residual chlorine, microorganisms, and dissolved salts. RO technology provides deep desalination for complex water conditions, while NF technology retains beneficial minerals and improves drinking taste.

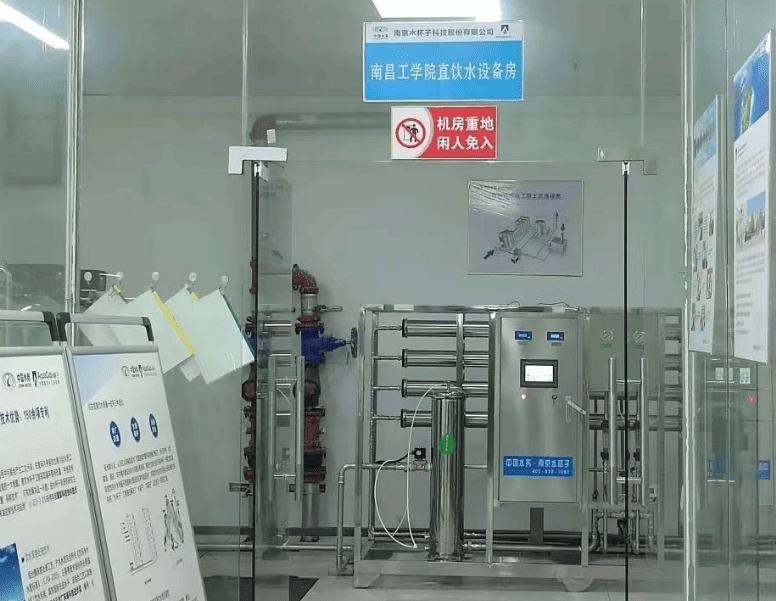

With an integrated automatic control system, the solution enables real-time monitoring, pressure protection, and stable operation. The modular containerized design integrates purification units, pipelines, pumps, and control systems, offering flexible installation, easy maintenance, and scalable water purification solutions.
0.5–2.0 m³/h
Integrated direct drinking water purification systems provide a rated production capacity of 0.5–2.0 m³/h (12–48 m³/day) for different water supply requirements.
0.15–0.4 MPa
Designed for municipal tap water or pretreated domestic water with a feed pressure range of 0.15–0.4 MPa.
4.5–8.5 kW
Standard configurations are equipped with a 380V, 50Hz power supply, with installed power ranging from 4.5 to 8.5 kW depending on capacity.
20 ft

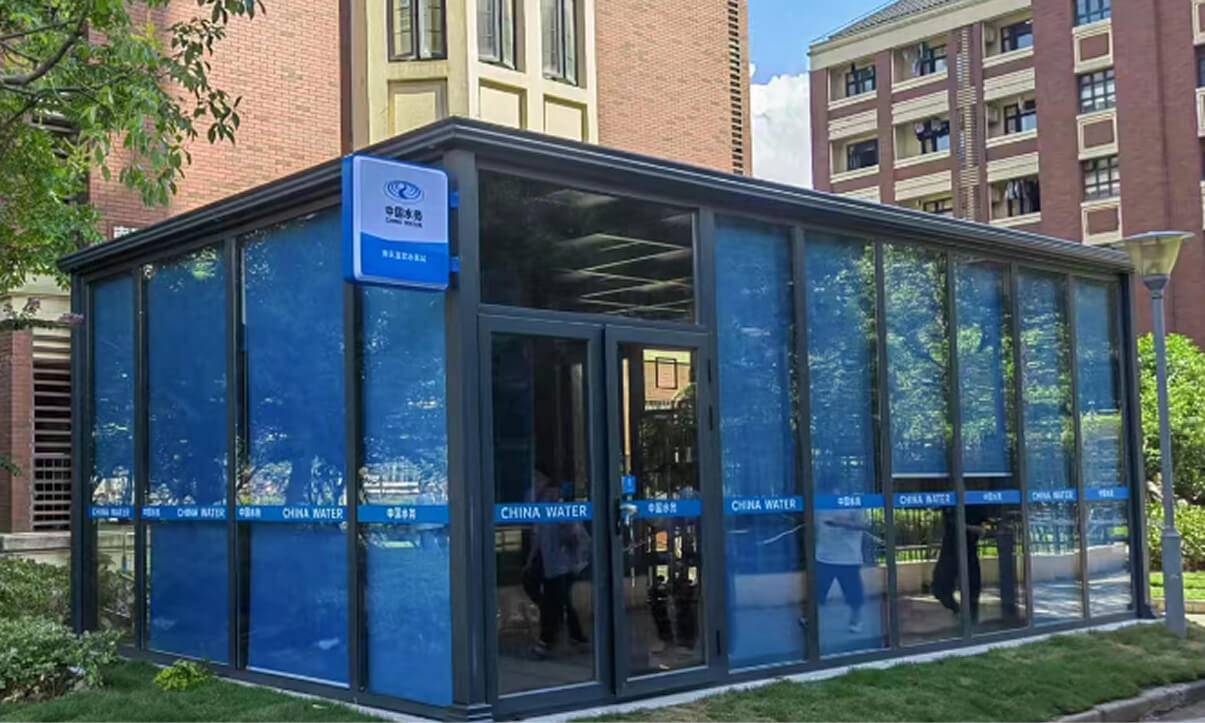

The purification system is integrated into a standard 20-foot containerized mobile room measuring approximately 6058 × 2438 × 2591 mm for rapid deployment and flexible relocation.
Upgrading existing municipal water supplies to provide safer and higher-quality drinking water.
Providing reliable drinking water solutions for educational institutions and public spaces.
Supporting decentralized direct drinking water systems for residential areas.
Meeting daily drinking water requirements for employees and facility users.
Providing deep desalination solutions for regions with complex water quality conditions.
