Aquacup Smart Modular Water Purification Station is a containerized direct drinking water solution designed for municipal water, groundwater, river water, and high-TDS water treatment applications. Integrating advanced purification technology, intelligent control, and modular design, the system provides safe, stable, and high-quality drinking water without the need for traditional water treatment rooms.

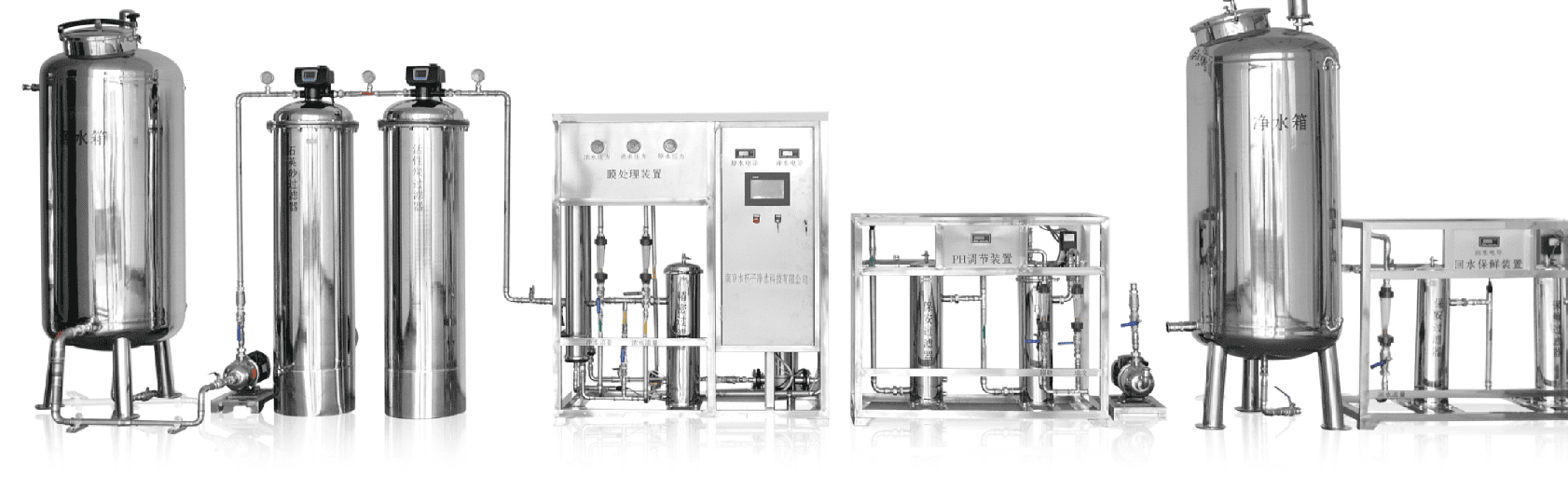

The system adopts a multi-stage purification process, including quartz sand filtration, activated carbon filtration, precision filtration, nanofiltration (NF) / reverse osmosis (RO) membrane purification, and post-disinfection. This advanced process effectively removes suspended solids, organic matter, dissolved salts, and contaminants, ensuring reliable drinking water quality for different water conditions.
Equipped with automatic control systems, real-time water quality monitoring, and flexible modular configurations, Aquacup Smart Modular Water Purification Station supports efficient operation, easy maintenance, and rapid deployment. With compact containerized construction and intelligent management, it provides an ideal drinking water solution for communities, campuses, commercial facilities, public infrastructure, and remote areas.
0.5–2.0 m³/h
The modular station provides a rated purified water production capacity of 0.5–2.0 m³/h, equivalent to approximately 12–48 m³/day.
20 ft
The purification system is integrated into a standard 20-foot containerized mobile room, measuring approximately 6058 × 2438 × 2591 mm.
4.5–8.5 kW
The system operates on a standard 380V, 50Hz power supply, with installed power ranging from 4.5 to 8.5 kW depending on the selected capacity.
0.15–0.4 MPa
The system is designed for municipal tap water or pretreated domestic water with an inlet pressure of 0.15–0.4 MPa.
Providing safe and reliable drinking water solutions for areas requiring decentralized water treatment.
Supporting high-quality drinking water supply for students and staff with stable operation.
Delivering purified drinking water solutions for offices, public buildings, and service facilities.
Enabling rapid deployment in regions with limited infrastructure or challenging water conditions.
Suitable for locations requiring advanced purification and desalination treatment.
